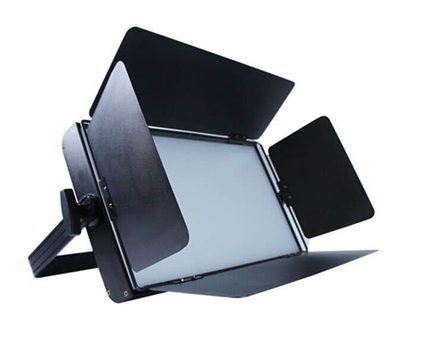

LED 120W(126W) SKY PANEL LIGHT DHS-630

Technical Specifications

Light Sources

LED: 630pcs 0.2W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: WW/CW

Optics

Beam angle: 120degree

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Color temperature: 3200K/5600K

Control

DMX channel: 1CH/2CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 180W

Construction

Body dimension: D570*W265*H109mm

Net weight: 5.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1 set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 650*450*190mm(1pc/carton) N.W/G.W/V.W: 5.5kg/7kg/12kg
