(주)동현시스텍 https://dhsystech.co.kr 건축음향, 방음, 무대 장치, 스튜디오 조명, 음향 영상(A/V System) 부분의 첨단 기술력을 가지고 고객이 원하는 시스템을 컨설팅 및 설계는 물론 시공, 사후 관리까지 일관된 솔루션을 제공 <![CDATA[청심외국어학교]]>





]]> Thu, 12 Jan 2023 08:44:15 +0000 <![CDATA[전북교육정보과학원]]>






]]> Thu, 12 Jan 2023 08:43:11 +0000 <![CDATA[삼성인력개발원]]>



]]> Thu, 12 Jan 2023 08:42:15 +0000 <![CDATA[삼성R4,CS]]>

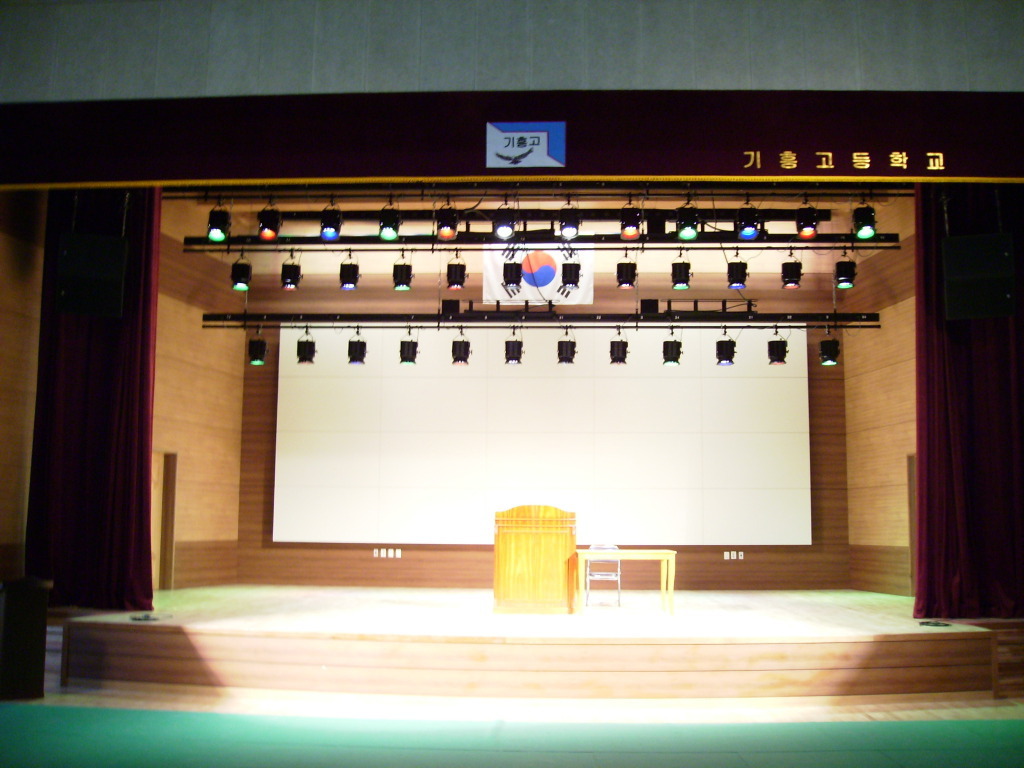

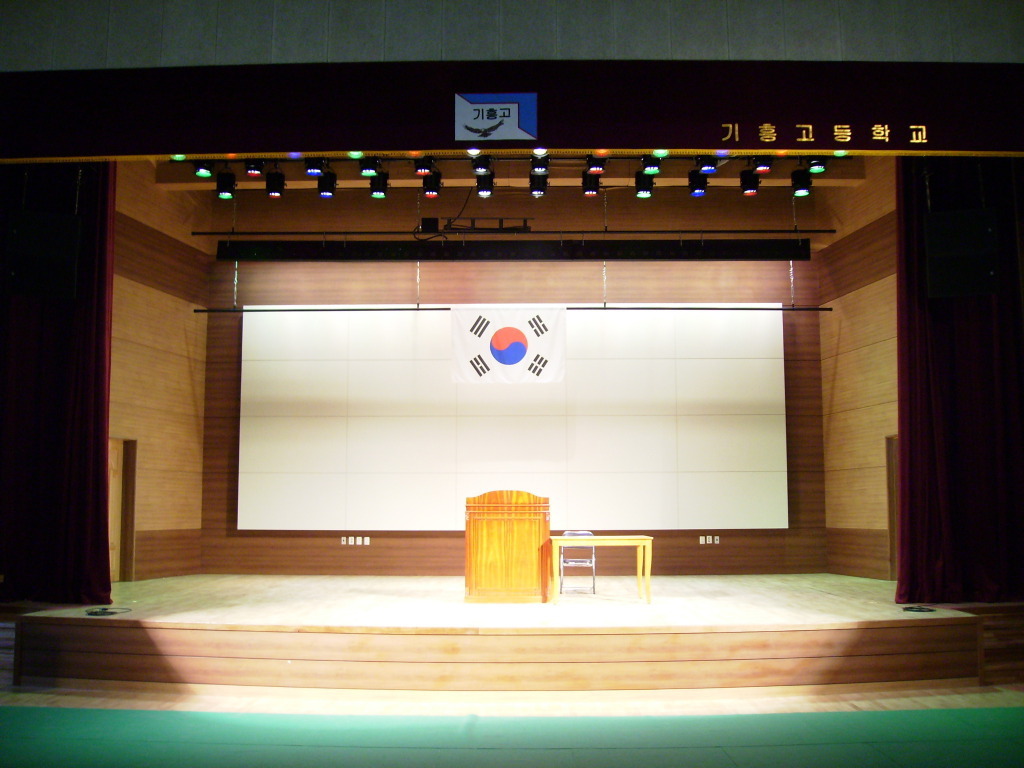

]]> Thu, 12 Jan 2023 08:41:08 +0000 <![CDATA[기흥고등학교]]>





]]> Thu, 12 Jan 2023 08:39:09 +0000 <![CDATA[국군방송]]>




]]> Thu, 12 Jan 2023 08:37:40 +0000 <![CDATA[강남방송고등학교]]>





]]> Thu, 12 Jan 2023 08:34:51 +0000 <![CDATA[LED 다운라이트 60W 디밍 동영상]]>
]]> Thu, 07 Apr 2022 00:42:05 +0000 <![CDATA[건설업등록증]]>
]]> Mon, 04 Apr 2022 04:28:06 +0000 <![CDATA[LED 150W Motorize Beam Angle Soft Sky Panel Light DHS-MA150]]>

Technical Specifications

Light Sources

LED: 1200pcs 0.2W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: WW to CW

Optics

Beam angle: 120degree

Overturn angle: 0-60degree

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Color temperature: 3200K/5600K optional

Control

DMX channel: 4CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 200W

Construction

Hole dimension: 580*360mm

Body dimension: D635*W390*H130mm

Net weight: 12.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 685*430*260mm(1pc/carton)

N.W/G.W: 12.5kg/14kg


]]> Tue, 22 Sep 2020 12:11:02 +0000 <![CDATA[LED 150W Angle Adjustable Soft Sky Panel Light DHS-A150]]>


Technical Specifications

Light Sources

LED: 630pcs 0.2W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: WW/CW

Optics

Beam angle: 120degree

Flip angle: 0-45degree, manual

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95, R9≥90, R15≥90

Color temperature: 3200K/5600K optional

Control

DMX channel: 1CH; 2CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC90V-240V, 50/60Hz

Related power: 150W

Construction

Hole dimension: 500*310mm

Body dimension: D535*W340*H106mm

Net weight: 5.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 685*430*260mm(1pc/carton)

N.W/G.W: 6kg/7kg


]]> Tue, 22 Sep 2020 12:09:56 +0000 <![CDATA[LED 150W RGB Bicolor SKY PANEL LIGHT DHS-MB150]]>

Technical Specifications

Light Sources

LED: 480pcs 0.2W RGB 3in1 LED chips, 480pcs 0.2W 3200K warm white LED chips, 480pcs 0.2W 5600K cold white led chips

Lifespan: 50,000hours

Color: RGB colorful and from warm white to cold white

Optics

Beam angle: 120degree

Dimmer: 0~100% linear dimmer

Light Output

CRI(white): Ra≥95

Color temperature: 3000k-6000k adjustable

Control

DMX channel: 7CH,7CH, 4CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 150W

Construction

Body dimension: D730*W347*T153mm

Net weight: 7.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 810*520*250mm(1pc/carton) [c:19-11-19]

N.W/G.W/V.W: 9kg/11.7kg/21.1kg


]]> Tue, 22 Sep 2020 12:09:15 +0000 <![CDATA[LED 300W Bicolor SKY PANEL LIGHT DHS-B300]]>

Technical Specifications

Light Sources

LED:1488pcs 0.5W high CRI and high brightness LED bead chips

Lifespan:50,000hours

Color: from warm white to cold white

Optics

Beam angle: 120degree

Frequency: 24K flick free light source drive system

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Special CRI: R9≥90, R15≥90

Color temperature: 3000k-6000k adjustable

Control

DMX channel: 4CH/5CH

Control mode: DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob(wireless remote control option)

Control panel: 2.4in LCD display + 4 buttons

Power Supply

Related voltage: AC90V-240V, 50/60Hz

Related power: keep output 300W

Construction

Body dimension: D640*W98*H425mm

Net weight: 8kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator+ light body + a small mute fan

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 690*420*300mm(1pc/carton)

N.W/G.W/V.W: 12kg/15kg/18kg


]]> Tue, 22 Sep 2020 12:08:11 +0000 <![CDATA[LED 200W Bicolor(No Fan) SKY PANEL LIGHT DHS-B200]]>

Technical Specifications

Light Sources

LED:1400pcs 0.5W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: from warm white to cold white

Optics

Beam angle: 120degree

Frequency: 24K flick free light source drive system

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Special CRI: R9≥90, R15≥90

Color temperature: 3000k-6000k adjustable

Control

DMX channel: 4CH/5CH

Control mode: DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob(wireless remote control option)

Control panel: 2.4in LCD display + 4 buttons

Power Supply

Related voltage: AC90V-240V, 50/60Hz

Related power:keep output 200W

Construction

Body dimension: D640*W98*H425mm

Net weight: 8kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 740*530*230mm(1pc/carton)

N.W/G.W/V.W: 8kg/10kg/18kg
]]> Tue, 22 Sep 2020 12:07:21 +0000 <![CDATA[LED 120W(126W) Bicolor SKY PANEL LIGHT DHS-B630]]>


Technical Specifications

Light Sources

LED: 1200pcs 0.2W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: from warm white to cold white

Optics

Beam angle: 120degree

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Color temperature: 3000k-6000k adjustable

Control

DMX channel: 4CH/5CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 120W

Construction

Body dimension: D570*W265*H109mm

Net weight: 5.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 680*440*180mm(1pc/carton

N.W/G.W/V.W: 5.5kg/7.4kg/10.8kg
]]> Tue, 22 Sep 2020 12:06:20 +0000 <![CDATA[LED 120W(126W) SKY PANEL LIGHT DHS-630]]>

Technical Specifications

Light Sources

LED: 630pcs 0.2W high CRI and high brightness LED bead chips

Lifespan: 50,000hours

Color: WW/CW

Optics

Beam angle: 120degree

Dimmer: 0~100% linear dimmer

Light Output

CRI: Ra≥95

Color temperature: 3200K/5600K

Control

DMX channel: 1CH/2CH

Control mode: DMX-512, Demo mode, Manual

Control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 180W

Construction

Body dimension: D570*W265*H109mm

Net weight: 5.5kg

Shell color: black

Housing material: aluminum alloy

Working Environment

Working temperature: -25-40℃

Cooling: aluminum radiator and light body

Protection rating: IP20

Standard Configuration Spare Part List

1 set Power in and Power out power cable with plug [standard configuration]

Light visor: 1pc light visor [optional configuration]

Package

Carton board box package size: 650*450*190mm(1pc/carton) N.W/G.W/V.W: 5.5kg/7kg/12kg


]]> Tue, 22 Sep 2020 12:05:42 +0000 <![CDATA[LED 600W Bicolor SPOT LIGHT FRESNEL DHS-BF600]]>

Technical Specifications

Light Sources

LED: 1pc 600W bicolor COB LED Lamps

Lifespan: 500,000h

Color: CW+WW

Optics

Beam angle: 15-60degree

Dimmer: 0-100% linear dimmer

Light Output

Optimal projection distance: 5-60m

Control

Control mode: DMX-512; Auto run

DMX channel: 4CH, 5CH, 6CH, 15CH

Display of control panel: digital tube

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 300W(every color 3200K and 5600K)

Construction

Body dimension: D584*W352*H293mm

Net weight: 12kg

Shell color: black

Shell material: aluminium die casting

Working Environment

Working temperature: -25-40℃

Cooling: Radiator and Fan, within 45db

Protection rating: IP20

Standard Configuration Spare Part List

1pc power cable with plug(America standard, Euro standard, or other standard)

User manual: English version user manual

Optional Configuration Spare Parts List

Clamps: different style clamps

Safety rope: different size safety ropes

Package

Carton board package size: 720*390*420mm(1pc/carton)

N.W/G.W: 12kg/14kg


]]> Tue, 22 Sep 2020 12:04:56 +0000 <![CDATA[LED 400W Bicolor SPOT LIGHT FRESNEL DHS-BF400]]>

Technical Specifications

Light Sources

LED: 1pc 400W Bi color COB LED Lamps

Lifespan: 500,000h

Color: from CW to WW, 3200K-5600K adjustable

Optics

Beam angle: 15-60degree

Dimmer: 0-100% linear dimmer

CRI: Ra>93/95/97

Color temperature: 3200K-5600K

Light Output

Illuminance: 14500lux (1m 15°, 3200K); 20000lux(1m 15°, 5600K); 4000lux

(1m 60°, 3200K); 6000lux (1m 60°, 5600K);

Optimal projection distance: 5-30m

Control

Control mode: DMX-512; Auto run

DMX channel: 4CH, 5CH

Color control: fixed 3200K, 4500K, 5600K

Display of control panel: LCD display + 4 buttons

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 450W

Output power: max 210W for every color from 3200-5600K

Construction

Body dimension: D455*W265*H292mm

Net weight: 9.5kg

Shell material: aluminium die casting

Working Environment

Working temperature: -25-40℃

Cooling: copper tube convector + mute fan

Protection rating: IP20

Standard Configuration Spare Part List

1pc power cable with plug(America standard, Euro standard, or other standard)

Barn door: 1pc stand barn door  User manual: English version user manual

Package

Carton board package size: 530*330*390mm(1pc/carton)N.W/G.W/V.W: 8.5kg/9.1kg/13.7kg


]]> Tue, 22 Sep 2020 12:03:45 +0000 <![CDATA[LED 300W Motorize Zoom SPOT LIGHT FRESNEL DHS-MF300]]>

Technical Specifications

Light Sources

LED: 1pc 300W COB LED Lamps

Lifespan: 500,000h

Color: CW, WW optional

Optics

Beam angle: 15-60degree, DMX/motorize and manual zoom

Dimmer: 0-100% linear dimmer

Light Output

Luminous flux: 2190

Illuminance: 470 Lux (6m 15°) CRI: Ra>95

Optimal projection distance: 10-45m

Control

Control mode: DMX-512; Auto run

DMX channel: 2CH/3CH

Display of control panel: digital tube

Noise: under 45db

Power Supply

Related voltage: AC100V-240V, 50/60Hz

Related power: 400W

Construction

Body dimension: D455*W265*H292mm

Net weight: 7.5kg

Shell color: black

Shell material: aluminium die casting

Working Environment

Working temperature: -25-40℃

Cooling: Copper tube radiator and mute fan

Protection rating: IP20

Standard Configuration Spare Part List

1pc power cable with plug(America standard, Euro standard, or other standard)

User manual: English version user manual

Optional Configuration Spare Parts List

Clamps: different style clamps optional Safety rope: different size safety ropes

Package

Carton board package size: 530*330*390mm(1pc/carton) N.W/G.W/V.W: 7.5kg/8.6kg/13.7kg


]]> Tue, 22 Sep 2020 12:02:57 +0000 <![CDATA[LED 300W SPOT LIGHT FRESNEL DHS-F300]]>

Technical Specifications

Light Sources

·LED: 1pc 300W COB LED Lamps

·Lifespan: 500,000h

·Color: CW, WW optional

Optics

·Beam angle: 15-60degree

·Dimmer: 0-100% linear dimmer

Light Output

·Luminous flux: 2190

·Illuminance: 470 Lux (6m 15°) CRI: Ra>95

·Optimal projection distance: 10-45m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 1CH, 2CH

·Display of control panel: digital tube

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 350W

Construction

·Body dimension: D384*W251*H261mm

·Net weight: 4.8kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional ·Safety rope: different size safety ropes optional

Package

·Carton board package size: 530*330*390mm(1pc/carton) ·N.W/G.W/V.W: 7.5kg/8.6kg/13.7kg


]]> Tue, 22 Sep 2020 12:02:07 +0000
